Home > Products > Divider > Dual-Line

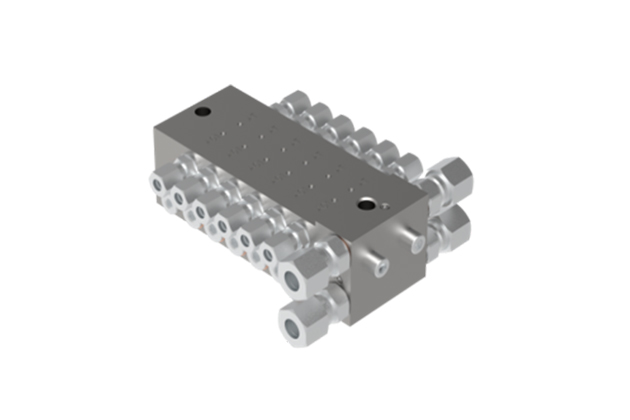

CSP

Combination available on site based on the number of lubrication points of equipment as required
Difference of oil volume ratios at single oil outlets reaching up to 10 times
Sizes up to 20 outlets
Exact lubricant metering
Unique internal crossporting technology
Get Inquiry
Send Email
Whatsapp
CSP
CSP
Introduction
Features and Benefits
Technical Parameters
Related Cases
Introduction
ASP/CSP series dual-line distributors are simply structured and equipped with short oil channels inside. All outlet units are mutually independent and perform stably and reliably. They switch directions alternately through 2 main oil passages to drain oil at all oil outlets continuously, showing a high working efficiency. These distributors can achieve the difference of oil volume ratios of more than ten times with constant connectors replaced, and are applicable to the low temperature, heavy load, highly-viscous lubrication grease and other working conditions.
Features and Benefits
01
Combination available on site based on the number of lubrication points of equipment as required. If you need to monitor the ASP dule line divider, pin or sensor are optional for you.
02
ASP/CSP dule line grease distributor could be widely used for construction and mining, farm machinery,industrial equipment, renewable energies(wind turbine).
03
Under the alternating oil supply pressure of two grease supply main pipes, the ASP dual line distributor can directly control the piston grease supply, completing the function of quantitatively distributing grease to lubrication points. This design makes the distribution of oil more precise and reliable.
Technical Parameters
CSP
Content Parameter
Operating   temperature -40℃~80℃
Displacement specification 0.1, 0.15, 0.2,
0.4, 0.6, 0.8 & 1 mL/cy
Operating
pressure		 25MPa
Start-up
pressure		 ≤2MPa
Number of outlets 2-20
Applicable grease NLGI-0#, 1# & 2#
Inlet/outlet thread M10X1
