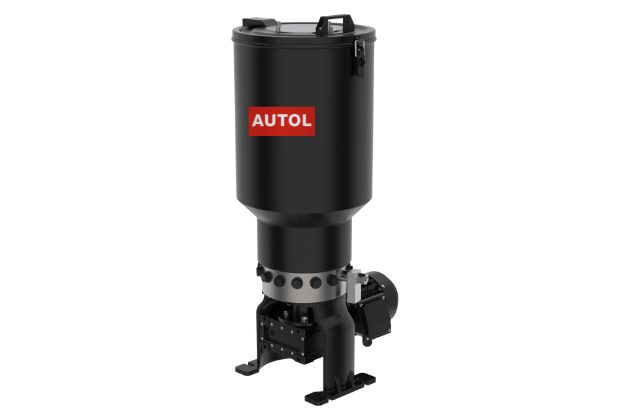

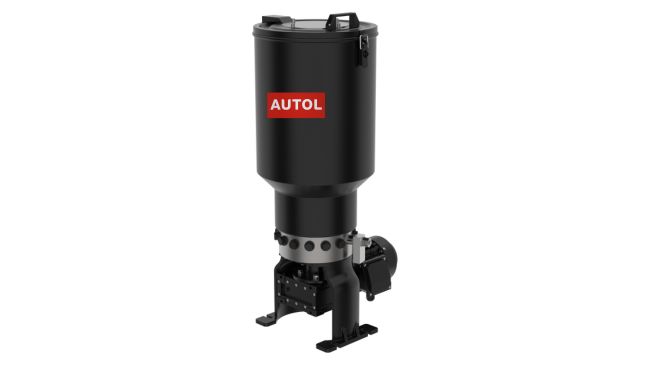

| Model | ABDB-15 |
| Number of outlets | 1-15 |
| Outlet thread | G1/4 (internal thread) |
| Max operating pressure | 350 bar |
| Reservoir capacity | 30L、60L、100L |
| Number of plungers | K6 (0.033 ml/cy ~ 0.16 ml/cy) K7 (0.045 ml/cy ~ 0.23 ml/cy) |
| lubricant | Grease up to NLGI-2 Lubricating oil with viscosity above 200mm2/s |
| Driver | 0.25KW |
| Ratio | 7:1(only for free shaft) 50:1.100:1.500:1 |
| Electrical connection | multi-phase motor：380-420 VAC/50 Hz;440-480 VAC/60 Hz; single-phase motor：500VAC/50Hz |
| IP class | IP55 |
| Operating temperature | -20℃~70℃ |
| Liquid level detection | Laser high and low liquid-level alarm |
