Home > Products > Divider > Progressive

JPQ

Combination available on site based on the number of lubrication points of equipment as required
Difference of oil volume ratios at single oil outlets reaching up to 20 times
Outlets are up to 24 outlets
Exact lubricant metering
Unique internal crossporting technology
Optionally equipped with visual monitoring pin or with electrically monitored piston detector
Get Inquiry
Send Email
Whatsapp
Download Product Brochure
Download
JPQ
JPQ
JPQ
JPQ
JPQ
JPQ
Introduction
Features and Benefits
Technical Parameters
Related Cases
Introduction

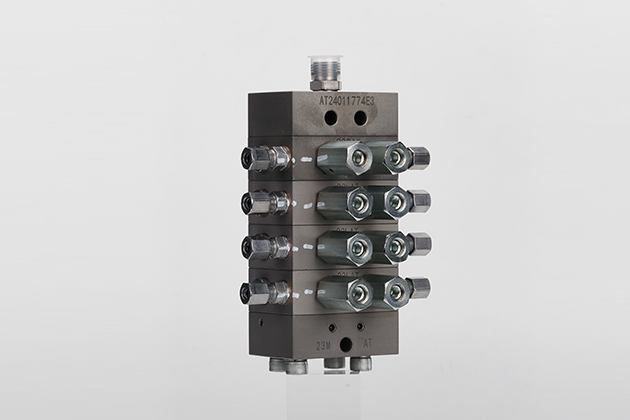

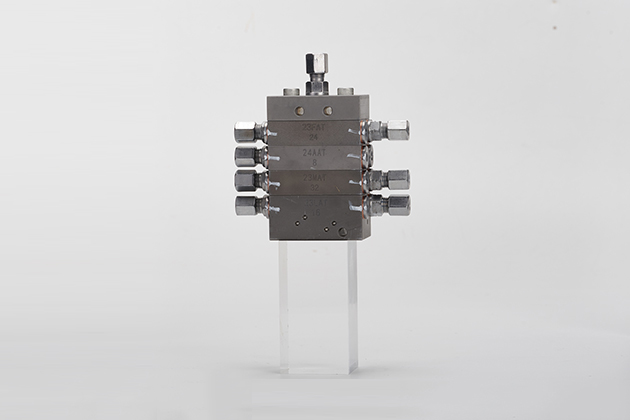

The progressive JPQ dividers are manufactured in a variable chip construction, which offers the advantage that the divider can be extended or shortened at random according to the amount of lubrication points.
Due to this chip construction there is also the possibility of constructing an overall progressive divider from individual distributor disks with different outputs per piston stroke.
The difference in output per piston stroke is created by different piston diameters. To get the correct functioning of a progressive divider a minimum of three pistons, i.e., a minimum of three output elements is a must.
Features and Benefits
01

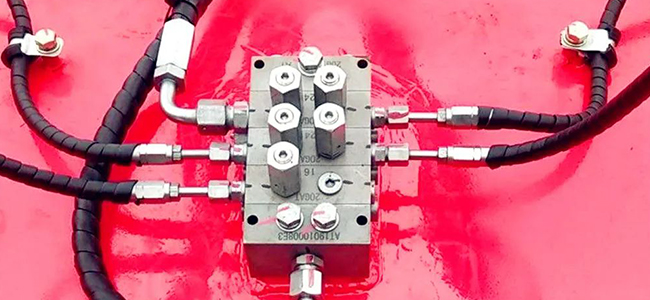

JPQ divider outlets could be combined on site based on the number of lubrication points of equipment as required.
02

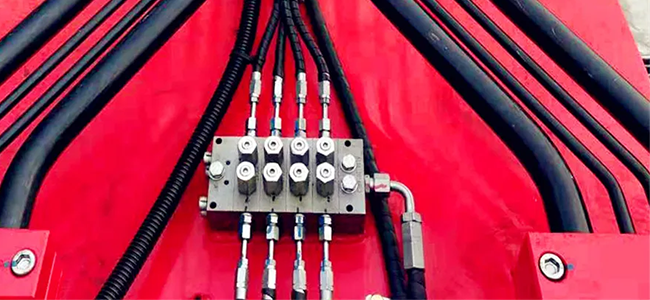

What is more, JPQ grease divider could be equipped with visual monitoring pin or with electrically monitored piston detector, which could check JPQ status more easily.
03

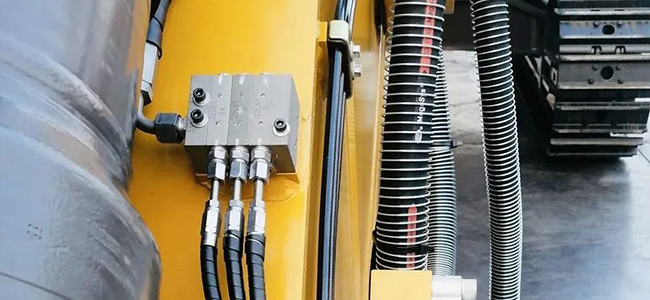

Easy for maintenance and repair by just replacing the blocked chip, which reduce material cost.
Technical Parameters
JPQ
Content Parameter
Operating   temperature -40℃~80℃
Outlet flow 0.08, 0.16, 0.24, 0.32, 0.8, 1.04, 1.28 & 1.6 ml/cy
Operating
pressure		 30MPa
Number of outlets 6-24
Start-up
pressure		 ≤2MPa
Applicable
grease		 NLGI-0#, 1# & 2#
Inlet/outlet thread M10X1
Distributor
Photo Name Description


Hall Sensor

AMP type
