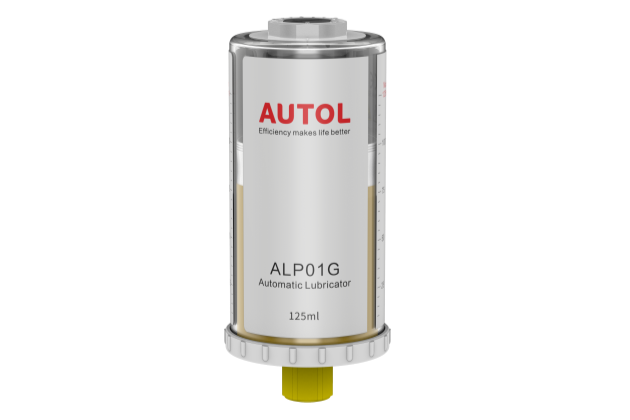

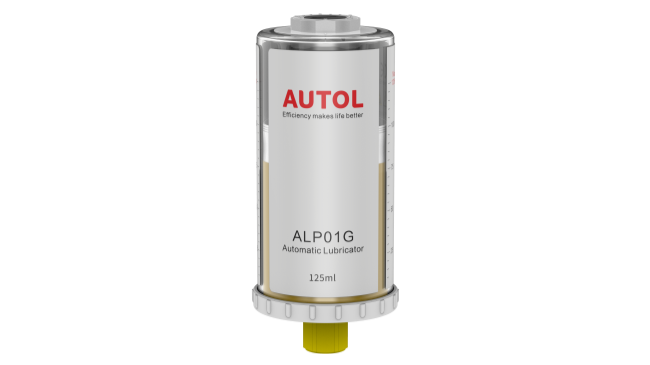

ALP01G Single Point Lubricator

ALP01G lubrication pumps are engineered for automatic delivery of exact lubricant quantities

ALP01G Single Point Lubricator features a dial-type time setting and is suitable for both indoor and outdoor applications at temperatures ranging from -20 °C to +60 °C. Flexible discharge period: Adjustable from 1 to 12 months using the dial on top. Ready-to-use: Delivered fully assembled; simply turn the dial to activate the system.

Reliable operation: An electronically controlled chemical reaction generates the pressure required to continuously supply fresh lubricant.

Wide application: ALP01G lubricator is suited to a broad range of rolling element and plane bearing applications and can also be filled with oil for the purpose of chain lubrication.

Get Inquiry

Send Email

Introduction

ALP01G single point lubricator with dial type time setting.
It can be used for inside or outside applications at temperatures ranging from -20 °C to +60 °C.
Discharge period setting is flexible and can be adjusted from 1 to 12 months using the dial on top of the lubricator.

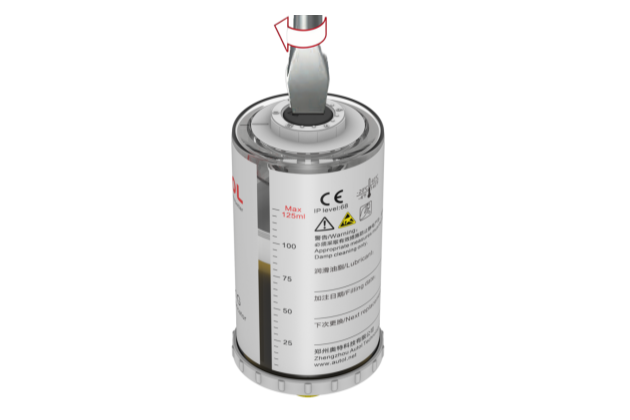

ALP01G lubricator comes fully assembled and ready-to-use. Simply turn the dial to the desired discharge period and the system is activated.

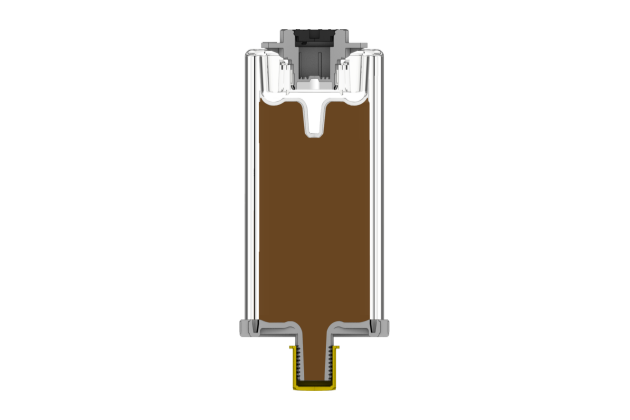

The electronically controlled chemical reaction will build up the pressure that is necessary to continually supply the lubrication point with fresh lubricant.
ALP01G lubricator is suited to a broad range of rolling element and plane bearing applications and can also be filled with oil for the purpose of chain lubrication.

Features and Benefits

01 Reliable lubrication made simple

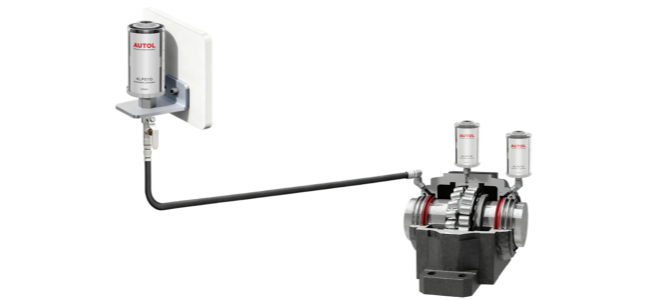

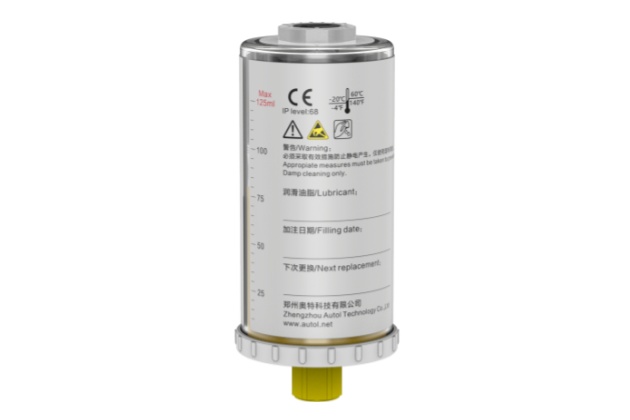

▪ The single-point lubricator provides variable time settings for precise lubricant dispensing with minimal compromise. ▪ Settings can be adjusted during service, and the unit can be stopped and restarted as needed. ▪ Its clear body allows easy inspection of the piston position, while the slim design saves installation space. ▪ Simple remote mounting options, including beam and cage attachments, ensure versatile installation.

Technical Parameters

ALP01G Single Point Lubricator

No.	Name	Parameter
1	Housing material	Transparent plastic
2	Operating principle	Gas generating unit
3	Max. operating pressure	4 bar
4	Discharge period (at +20˚C with NLGI 2 grease)	1, 2, 3, ..., 12 months
5	Reservoir	125 ml
6	Protection class	IP68
7	Remote installations	Up to 0.5 meter of 10mm ID line
8	Lubricant	Up to NLGI 2 grease
9	Ambient temperature range	-20 ℃ to +60 ℃ (Low temperature grease is required to be used in low temperature environments)
