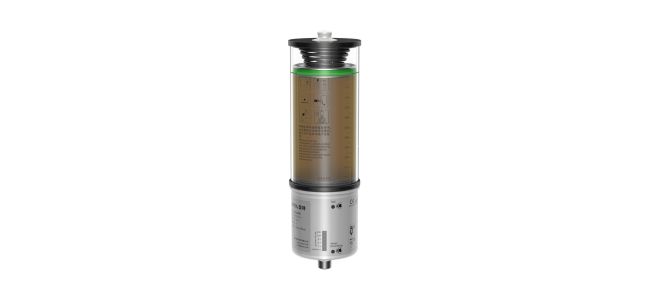

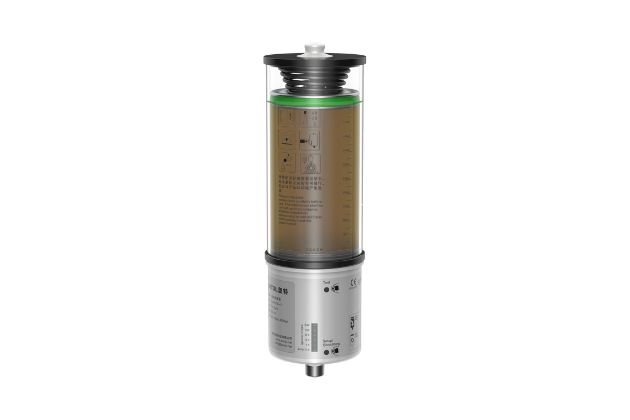

ALP01 Single Point Lubricator

The ALP01 series lubrication pump is designed as an automatic quantitative lubrication device.

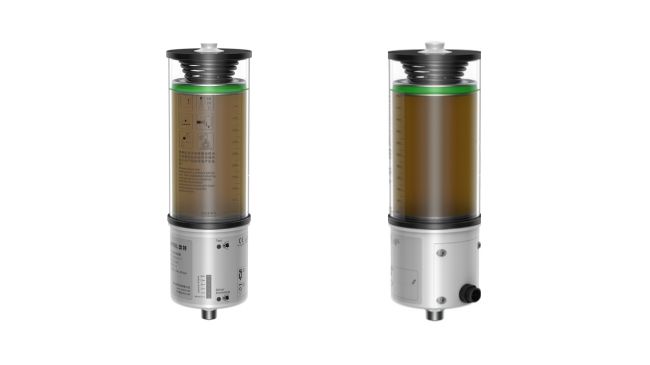

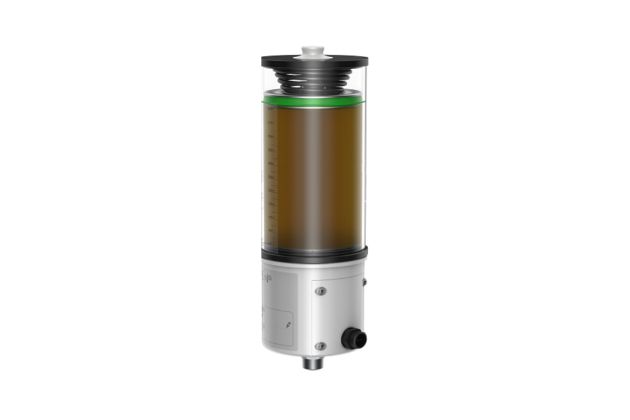

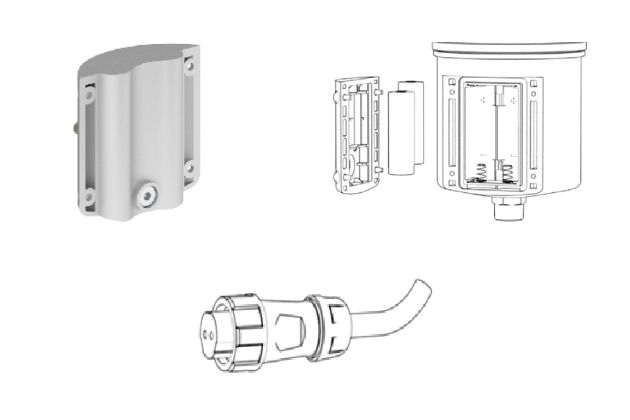

Model variants: The ALP01 is available in different reservoir sizes (120ml, 250ml, 500ml) and power supply options: ALP01 A/B: Powered by batteries, suitable for places without direct electrical access. The B model uses a replaceable 3.6V lithium battery. ALP01 C: Can be plugged into a 24VDC or 230VAC power supply, ideal for permanent installations with available electric sources.

Equipped with an electric motor and a battery capable of running continuously for about 28 hours. The device operates under a maximum pressure of 40 bar with NLGI 2 grease, ensuring effective lubrication under demanding conditions.

Adjustable settings: Features a magnetic cap on the top cover for easy adjustment of operation parameters, such as test runs or preset periods.

Get Inquiry

Send Email

Introduction

The ALP01 series lubrication pump is designed as an automatic quantitative device optimized for industrial applications requiring precise and frequent lubrication.
It features a maximum working pressure of 4MPa and incorporates a plunger pump to directly supply lubrication points or connect to a lubrication system. This micro lubrication pump is crucial in environments where exact lubrication is necessary to maintain machine efficiency and longevity.
The ALP01 series are available in various specifications and models, making it suitable for a wide range of sectors, including wind power generation, electric power, mining, metallurgy, machine tools, textiles, food industries, oil fields, ports, commercial vehicles, construction machinery, and heavy machinery equipment.

Features and Benefits

01 Applicable objects

Places with narrow space and only remote installation available; places where bearings are seriously worn after being polluted by dirt or dust; places where oil needs to be filled frequently but is not easy to be filled; And all industrial bearings that require lubrication grease to be filled. Unless the equipment in the above range requires the installation of the ALP01 lubrication pump,please contact AUTOL for confirmation before purchasing.

Technical Parameters

ALP01 Single Point Lubricator

NO.	Name	Parameter
1	Working pressure	2MPa
2	Maximum output pressure	4MPa
3	Capacity of oil tank	250mL\500mL\120mL
4	Applicable lubrication grease	NLGI2 and below lubrication greases (similar viscosity range: 32 ~ 680 pa·s)
5	Battery voltage	3.6 V lithium battery (replaceable, but non-rechargeable)
6	Applicable temperature	-20℃~60C
7	Waterproof grade	IP65
8	Specifications of oil outlet connector	R3/8 (standard)
9	Operation mode	Lubrication grease in the oil tank to be drained in 1,3, 6, 12 and 24 months (5 modes)
10	Overall dimensions of 500 ml model	285 mm × 85 mm (height x diameter)
11	Overall dimensions of 250 ml model	225 mm × 85 mm (height x diameter)
12	Overall dimensions of 120 ml model	195 mm × 85 mm (height x diameter)
13	Control form	Control by a built-in monitor
14	Display mode LED	Display by a LED indicator
15	Conveying capacity of each stroke	0.24mL
