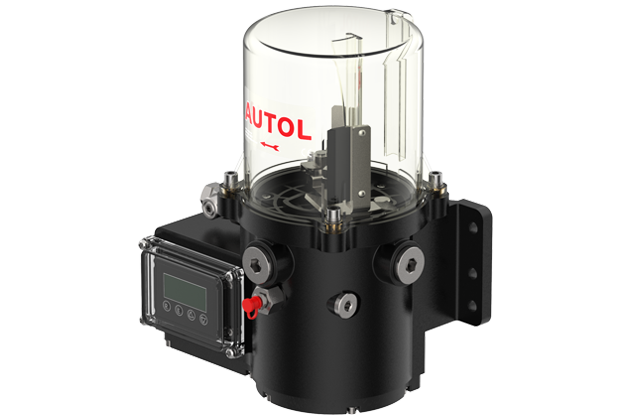

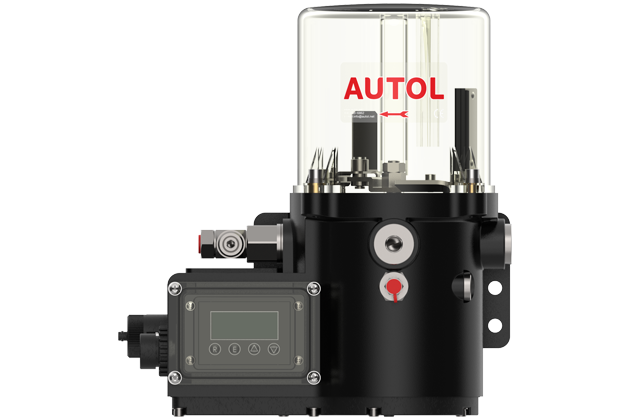

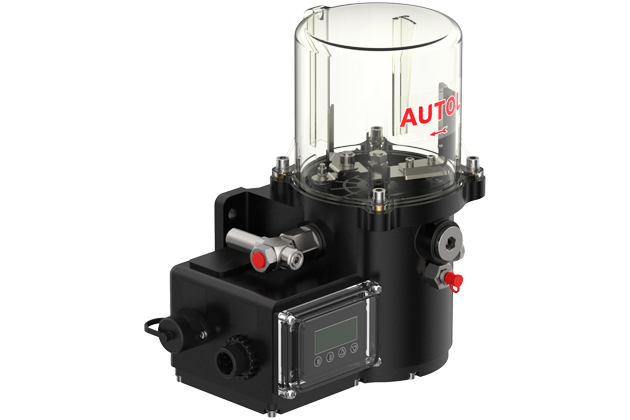

ALP811 Lubrication Pump

ALP80 series plunger pumps are driven by high-performance DC motors, are internally equipped with worm gear reducers, and can drive up to 3 plungers to work. Pump bodies are made of die-casting aluminum with stable and reliable performance.
The oil tank is made of PC  transparent material to facilitate observing the oil level.
These pumps can be equipped with ECU liquid crystal monitor and low liquid-level alarm device.
ALP811 Lubrication Pump
ALP811 Lubrication Pump
ALP811 Lubrication Pump
ALP811 Lubrication Pump
Introduction
Features And Benefits
Technical Parameters
Related Cases

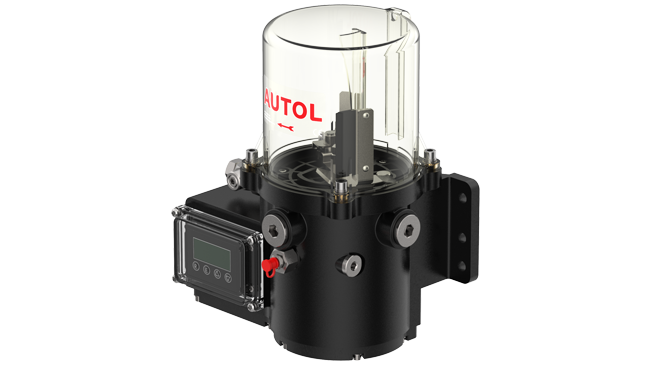

Introduction
ALP80 series plunger pumps are driven by high-performance DC motors, are internally equipped with worm gear reducers, and can drive up to 3 plungers to work. Pump bodies are made of die-casting aluminum with stable and reliable performance. The oil tank is made of PC  transparent material to facilitate observing the oil level. These pumps can be equipped with ECU liquid crystal monitor and low liquid-level alarm device.

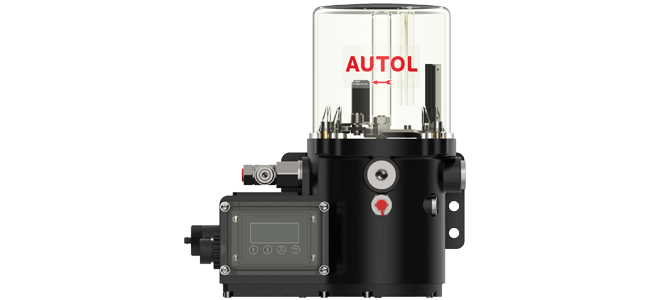

Features And Benefits
01
The series pumps are applicable to the progressive centralized lubrication system, which are mainly used in the loader, wide-body vehicle, bulldozer and other small-sized equipment.
Note: Please select the low-temperature grease of the same grade reasonably in winter in cold areas.
Technical Parameters
ALP811 Lubrication Pump Parameter
Model ALP811
Function principle Electric plunger pump
Operating   temperature -40℃~70℃
Oil tank capacity 1 L & 2 L
Voltage DC24V/DC12V
Operating current ≤3A
Number of outlets 1-3
Output flow 1.5 ml/min, 2.5 ml/min & 4.5 ml/min
Operating pressure 30MPa
Applicable grease NLGI-0#, 1# & 2#
IP grade IP65
Monitor External/internal layout
Mounting position with follower plate: any
without follower plate: upright
