Home > Products > Grease Pump > Progressive

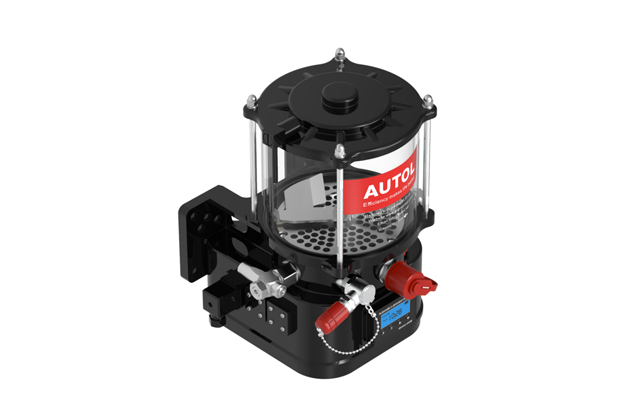

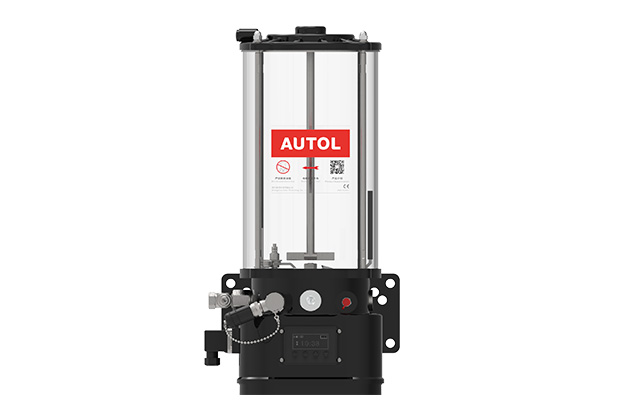

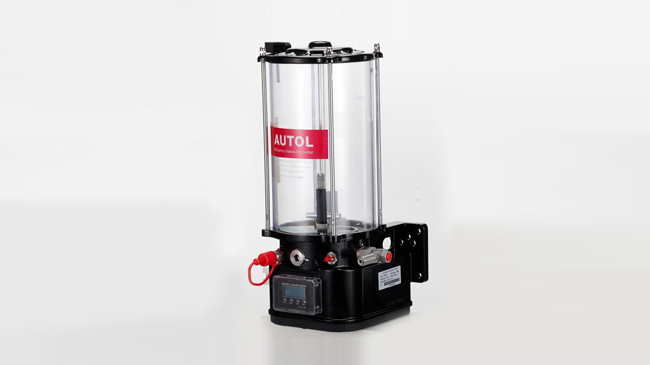

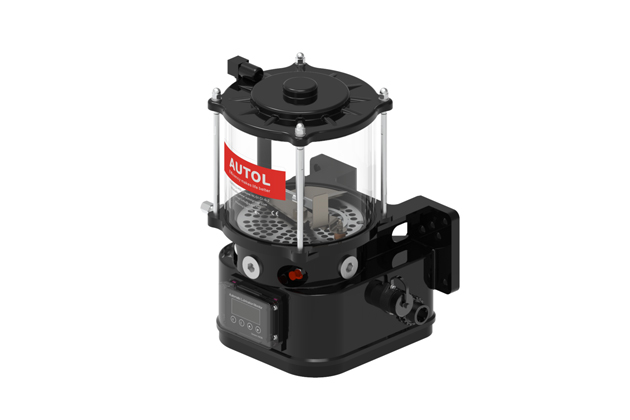

ALPB101 Lubrication Pump

ALPB100 series plunger pumps are driven by high-performance DC motors, are internally equipped with worm gear reducers, and can drive up to 4 plungers to work.
Pump bodies are made of  die-casting aluminum with stable and reliable performance.
The oil tank is made of PC transparent material to facilitate observing the oil level.
These pumps can be equipped with ECU liquid crystal monitor and low liquid-level alarm device.
Get Inquiry
Send Email
Whatsapp
Download Product Brochure
Download
ALPB101 Lubrication Pump
ALPB101 Lubrication Pump
ALPB101 Lubrication Pump
ALPB101 Lubrication Pump
ALPB101 Lubrication Pump
ALPB101 Lubrication Pump
Introduction
Features And Benefits
Technical Parameters
Related Cases
Introduction
Pump bodies are made of  die-casting aluminum with stable and reliable performance. The oil tank is made of PC transparent material to facilitate observing the oil level. These pumps can be equipped with ECU liquid crystal monitor and low liquid-level alarm device.
Features And Benefits
01
The series pumps are applicable to the progressive centralized lubrication system, which are mainly used in the engineering machinery, wind power generation, port-based metallurgy, food machinery,papermaking, printing and other equipment.
Technical Parameters
ALPB101 Lubrication Pump

Content Parameter
Function principle Electric plunger pump
Operating temperature -35℃~70℃
Reservoir size 2 L & 4 L
Voltage DC12V / DC24V / AC230V
Current consumption at +20℃    0.5A / 5A / 3A
Number of outlets 1-4
Output flow 1.5 cm³/min, 2.5 cm³/min & 4.5 cm³/min
Max Operating pressure 350 bar
Applicable grease NLGI-0#, 1# & 2#
IP grade IP69
Monitor External/internal layout
Mounting position with follower plate: any
without follower plate: upright

Note: Please select the low-temperature grease of the same grade reasonably in winter in cold areas.
